Description

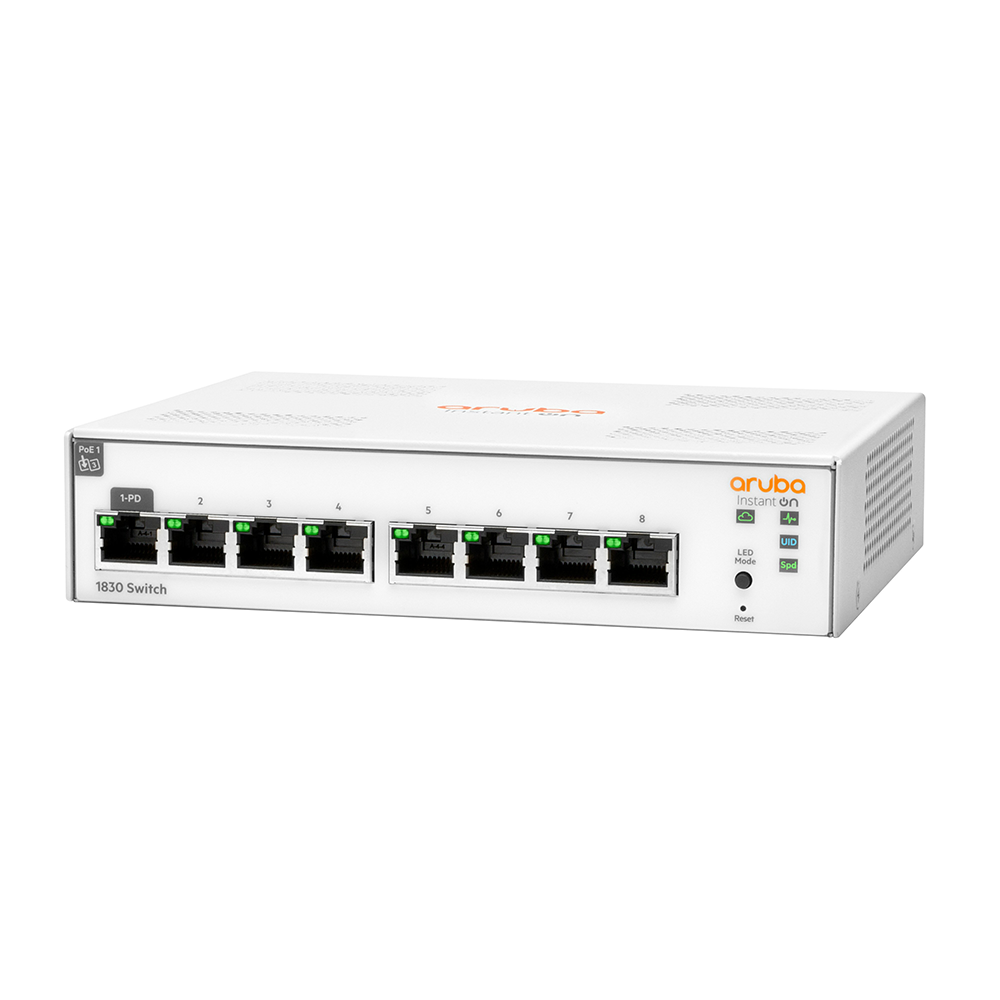

The Aruba Instant On 1830 8G 4-port Class 4 PoE 65 W Switch (JL811A) is a compact, smart-managed Layer 2 switch designed for small businesses. It features 8 Gigabit RJ-45 ports, with half (4) offering PoE+ support (up to 30 W each), and a total PoE budget of 65 W.
Target Audience
This model is perfect for small offices, retail shops, cafes, or home offices that need clean, clutter-free connectivity and just enough power distribution to support devices like IP phones or access points—without the complexity or cost of larger PoE models.
Key Features
Ports & Power
-
8 × 10/100/1000 Mbps RJ-45 ports—4 of which support Class 4 PoE (30 W each).
-
Total PoE budget: 65 W, ideal for powering multiple smaller PoE devices simultaneously.
Performance & Efficiency
-
Switching capacity: 16 Gbps.
-
Throughput: 11.9 Mpps.
-
Compact and fanless design, delivering quiet operation suitable for shared or noise-sensitive environments.
Management & Setup
-
Smart-managed via the Instant On mobile app, cloud-based portal, or local web GUI—so setup and management are easy, even for non-IT users.
Security & Reliability
-
Built-in VLANs, Global Storm Control, DoS protection, and TPM-based hardware security help safeguard your network.
Energy Efficiency & Design
-
Supports Energy Efficient Ethernet (IEEE 802.3az).
-
Auto PoE scheduling can reduce power usage by limiting PoE to business hours.
-
No licensing or subscription fees—just pay once, and you’re covered with an industry-leading limited lifetime warranty.
Specifications Summary
| Feature | Details |
|---|---|
| Ports | 8 × Gigabit RJ-45 (4 PoE+) |
| PoE Budget | 65 W total |
| Switching Capacity | 16 Gbps |
| Throughput | 11.9 Mpps |
| Design | Fanless, compact |
| Management | App, cloud portal, or local GUI |
| Security Features | VLAN, DoS protection, Storm Control, TPM |
| Energy Features | IEEE 802.3az, PoE scheduling |
Summary
In essence, the HPE Aruba Instant On 1830 8G PoE switch is a perfect match for small-scale networks. It offers the right mix of PoE power, simplicity, and compact form without the noise of fans or the complexity of enterprise gear. Plus, with smart management and built-in security, it’s a reliable choice that delivers value without recurring fees.
Full name: HPE NETWORKING ARUBA INSTANT ON SWITCH SERIES 1830 8G 8 x 10/100/1000 CLASS 4 POE 65W
Data sheet: https://instant-on.hpe.com/files/DS_AIO_1830SwitchSeries.pdf
